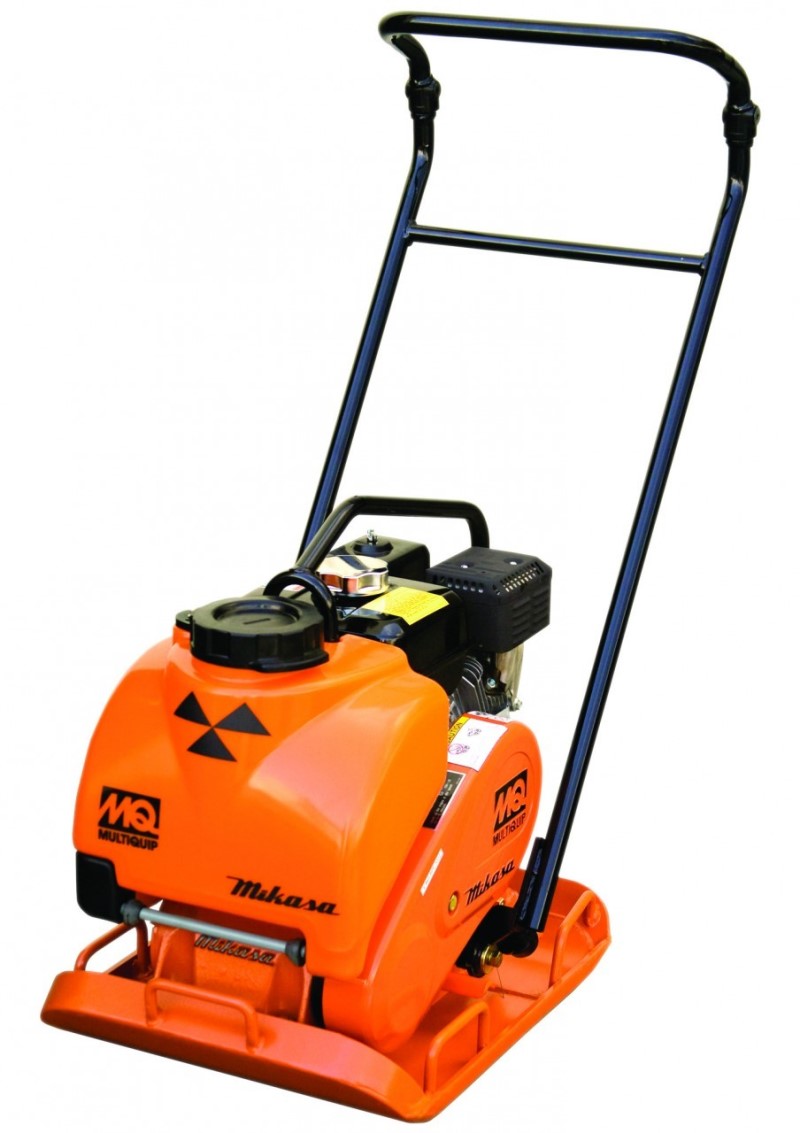

Multiquip MVC90H, 3350 cf, Honda GX160, water tank, 19.75in. Plate
The MVC90 boasts more standard features than any other one-way compactor. Its rugged design ensures years of productive service.
-Engine oil alarm, strong vibrator assembly
-Heavy-duty steel base plate-closed design, ribbed for extra strength
-Fitted with a 19.75 x 22 inch (502 x 560 mm) plate
-Durable steel water distribution system, reversible shock mounted handle
-Tubular steel roll bar cage protects engine components and provides a lifting point
-Double V-belt drive
Unit Specifications
Centrifugal Force - 3420 lbf 15.21 kN
Exciter Speed - 5800 VPM
Plate Size - 19.7 x 22 in; 50 x 56 mm
Max Forward Speed Per Min. - 82 ft 25 m
Fuel Consumption Per Hour - 0.343 gal 1.3 L
Water Tank Capacity - 4 qt 3.79 L
Dimensions & Weights
Overall Length - 23 in 584 mm
Overall Width - 19.75 in 502 mm
Overall Height - 45.25 in 1149 mm
Operating Weight - 194 lb 88 kg
