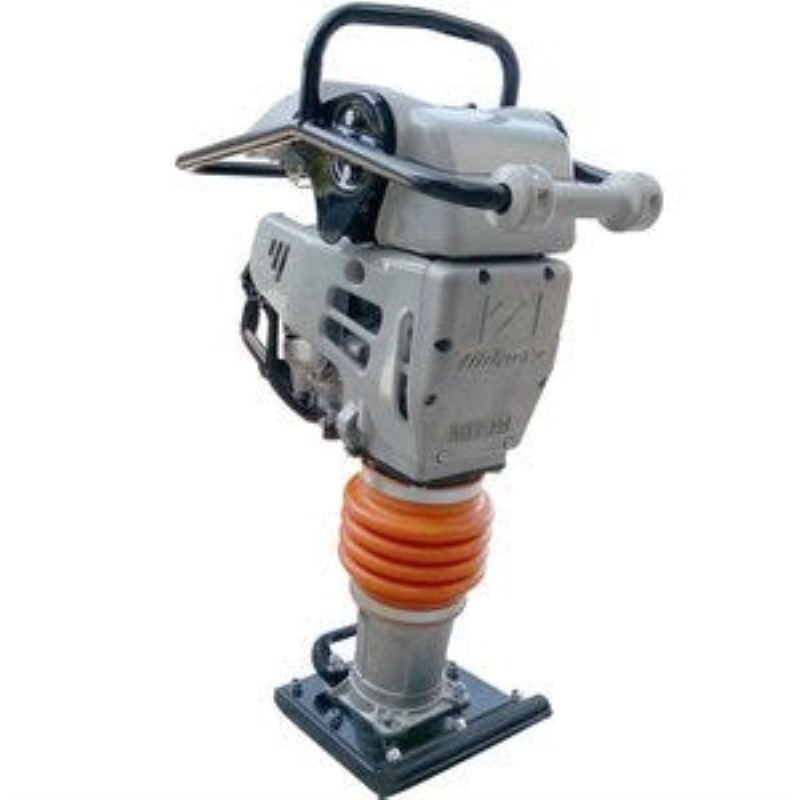

Multiquip Mikasa MTX70HD, Honda GX100 Engine, 3,350 lb Impact Force, 11.2 in shoe
Multiquip's Mikasa MTX70HD is our most popular selling rammer – new and improved! This middle-weight compactor is ideal for confined area compaction and is exceptionally well balanced. Now with a redesigned fuel-tank that meets new EPA standards and features an integrated tachometer/hour meter.
MTX-Series rammers are renowned for performance and ease of operation.
The MTX-Series includes the features most preferred by contractors such as:
-Cyclonic air cleaners that capture 98% of airborne dust particles
-Long-lasting laminated wood and steel shoe
-Low vibration handles for operator comfort
-Combination hour meter/tachometer
-Durable guards to protect the engine from damage
-Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
Blows Per Min. Up to 690*
Impact Force - 3,350 lbf 1520 kgf
Shoe Jump Height - 3.1 in 79 mm
Shoe Dimensions (LxW) - 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. - 55.8 ft 17 m
Fuel Tank Capacity - 2.7 qt 2.5 L
Dimensions & Weights
Overall Length - 31.0 in 788 mm
Overall Width - 13.8 in 350 mm
Overall Height - 40.4 in 1027 mm
Operating Weight - 165 lb 75 kg
Engine Specifications
Engine Make/Model Honda GX100
Start Method - Recoil
Engine Power - 2.8 HP 2.1 kW
Engine RPM - 4,100
Fuel Type - Gasoline
