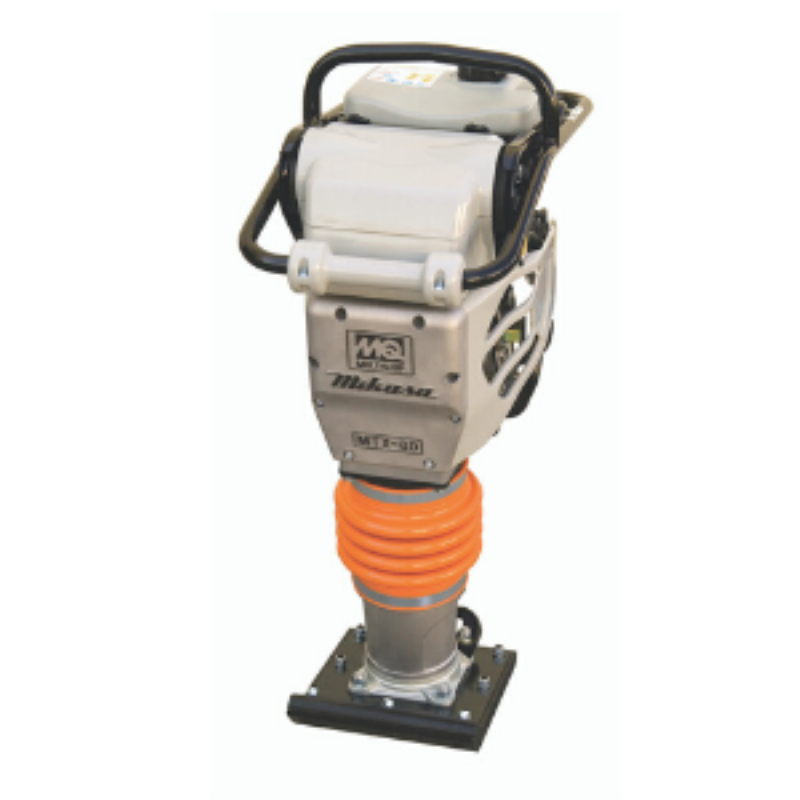

Multiquip Mikasa MTX-Series, MTX80HDR, Honda GXR120 Engine, 3,505 lb Impact Force, 11.2 in shoe
Multiquip’s Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX80HDR is ideal for high productivity with 3,505 lbs. of force combined with a 11.2" wide shoe.
MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most
preferred by contractors such as:
-Cyclonic air cleaners that capture 98% of airborne dust particles
-Long-lasting laminated wood and steel shoe
-Low vibration handles for operator comfort
-Combination hour meter/tachometer
-Durable guards to protect the engine from damage
-Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
Blows Per Min. Up to 678*
Impact Force - 3,505 lbf 1590 kgf
Shoe Jump Height - 3.1 in 79 mm
Shoe Dimensions - (LxW) 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. - 49.2 ft 15 m
Fuel Tank Capacity - 2.7 qt 2.5 L
Notes: *Variable speed impact — up to maximum impact force.
Dimensions & Weights
Overall Length - 31.0 in 788 mm
Overall Width - 14.4 in 365 mm
Overall Height - 40.4 in 1027 mm
Operating Weight - 181 lb 82 kg
Engine Specifications
Engine Make/Model - Honda GXR120
Start Method - Recoil
Engine Power - 3.6 HP 2.7 kW
Engine - RPM 4100
Fuel Type - Gasoline
