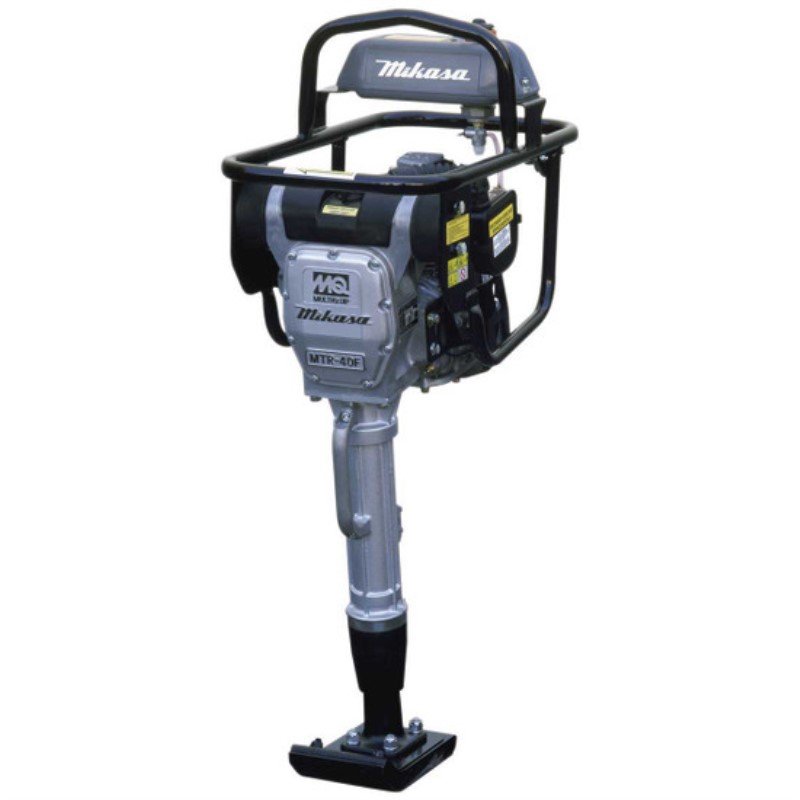

Multiquip Mikasa MTR40HF, Honda GX100, 1215 lbs force, 5.9" shoe
-Lightweight and portable - only 101 pounds (46 kg)
-Grease lubricated design eliminates making it ideal for narrow trenches
-Reliable 4-stroke Honda engine for reliable starting
-Ideal for landscapers, electrical contractors and plumbing contractors
-Optional foot extensions available for trench work
-Redesigned fuel tank to meet EPA standards for evaporative emmissions
Unit Specifications
Blows Per Min. - 699
Impact Force - 1215 lbf - 5.5 kgf
Shoe Jump Height - 2.2 in - 55 mm
Shoe Dimensions (LxW) - 10.6 x 5.9 in
270 x 150 mm
Travel Speed Per Min. - 30 ft 9 m
Fuel Tank Capacity - 2.1 qt 2 L
Dimensions & Weights
Overall Length - 24.5 in - 622 mm
Overall Width - 13.8 in - 351 mm
Overall Height - 43.7 in - 1110 mm
Operating Weight - 101 lb - 46 kg
Shipping Weight - 107 lb - 49 kg
Engine Specifications
Engine Make/Model - Honda GX100
Start Method - Recoil
Engine Power - 2.8 HP 2.1 kW
Engine - RPM 4100
Fuel Type - Gasoline
