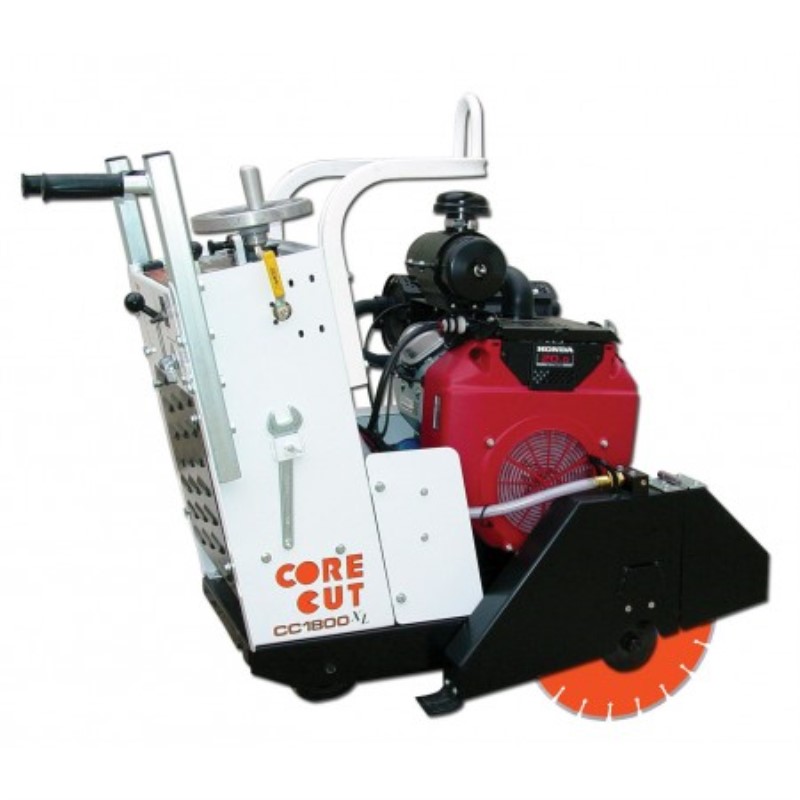

CC1800XL 20" Medium Walk Behind Saw, 5800668, Diamond Products
Features & Benefits:
• Electric start option on Honda and Briggs Vanguard models
• Pull start backup on Briggs Vanguard models
• Push or self-propelled drive
• Easy access to battery with heavy duty isolator switch to prevent battery drain
• Screw feed raise and lower
• Left or right side sawing
• Lifting hook standard on all models
• Self-aligning blade shaft bearings
Features & Benefits:
• Electric start option on Honda and Briggs Vanguard models
• Pull start backup on Briggs Vanguard models
• Push or self-propelled drive
• Easy access to battery with heavy duty isolator switch to prevent battery drain
• Screw feed raise and lower
• Left or right side sawing
• Lifting hook standard on all models
• Self-aligning blade shaft bearings
Specifications:
Maximum depth of cut with 14” blade: 4-5/8”
Maximum depth of cut with 18” blade: 6-5/8”
Maximum depth of cut with 20” blade: 7-5/8”
Blade shaft RPM: 2,600
Blade shaft diameter: 1-1/4”
Arbor Size: 1” w/drive pin
Blade shaft drive:
3 belt for 11.7HP,
4 belt other models
Blade mounting: Right or Left
Transmission (self-propelled): Eaton Model 6
Drive Speed: 0-80 feet/min
Fuel Capacity (gas models): 2 gallons
Electric Start (18-23 HP model): Standard
Low Oil Alert: Standard
Tach/Hour Meter (18-23 HP models): Standard
