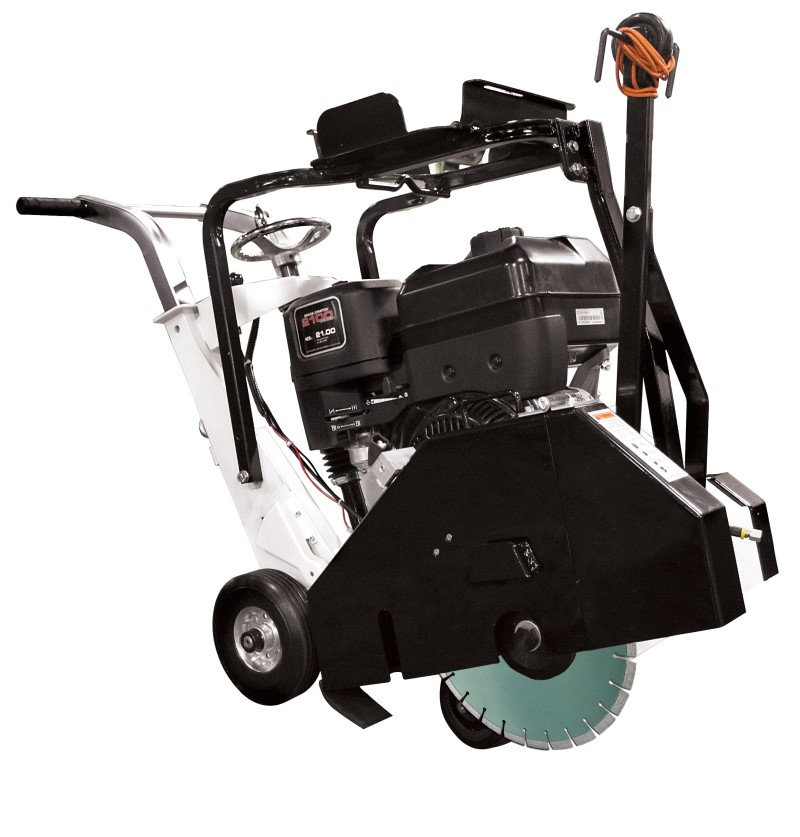

CC1300XL Small Walk Behind Saw, 18" Concrete Saw, 5800571, Diamond Products
Features & Benefits
• Heavy duty frame design
• Cyclone air filter (Honda® models)
• Easy to maneuver push drive
• Four positions heavy duty handles offer no slack and doesn't rattle like other adjustable handles
• Through rear axle for added strength
• Solid sealed and self-aligning blade shaft bearings
• Slip-on blade guard for easy blade access
• Three V-belts for extra power delivery to the blade shaft
• Left or right side sawing
• Optional water tank available for dust suppression
Features & Benefits
• Heavy duty frame design
• Cyclone air filter (Honda® models)
• Easy to maneuver push drive
• Four positions heavy duty handles offer no slack and doesn't rattle like other adjustable handles
• Through rear axle for added strength
• Solid sealed and self-aligning blade shaft bearings
• Slip-on blade guard for easy blade access
• Three V-belts for extra power delivery to the blade shaft
• Left or right side sawing
• Optional water tank available for dust suppression
Specifications
Maximum depth of cut with 14" blade: 4-5/8"
Maximum depth of cut with 18" blade: 6-5/8"
Maximum depth of cut with 20"" blade: 7-5/8"
Blade shaft RPM: 2,600
Blade shaft diameter: 1-1/4"
Arbor size: 1" with single drive pin
Blade mounting: Right or left
Blade raise/lower: Precision screw feed
Handle bars: Adjustable
Parts List # (Gas): 1801801
Parts List # (Electric) 1801809
Operator Manual #: 1801459
